63T Hot Sale Four Column Hydraulic Press Machine

Product model：Yz32

Product number：35

Feature：

Movable Table, Displacement Sensor, Knocking Device, Mould Exchanging Trolley, Cooling Device, Cushion Device, Photo-electric Safety Device System Oil Heating Device, Industrial Touch Screen, Automati

Details

FOUR-COLUMN HYDRAULIC PRESS

Yz32 Series

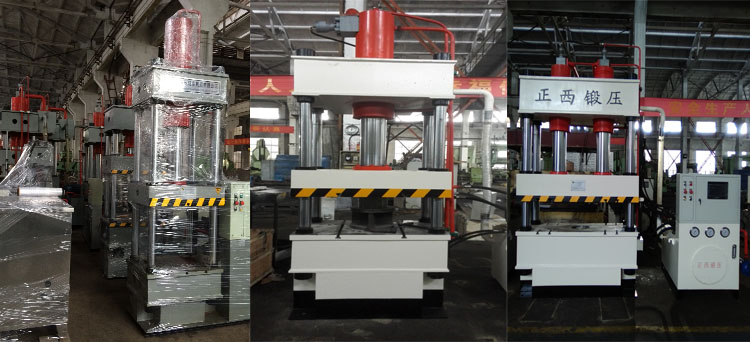

MACHINE APPEARANCE

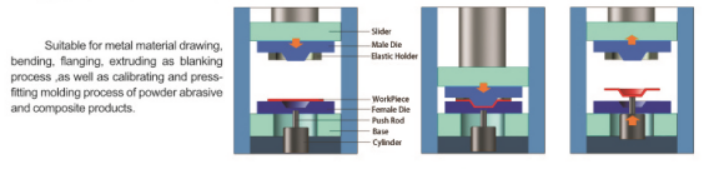

PRESSING PROCESS DIAGRAM

DATA SHEET

Model		unit	Yz32-40	Yz32-63	Yz32-100	Yz32-160	Yz32-200	Yz32-250	Yz32-315	Yz32-500	Yz32-630	Yz32-800	Yz32-1000	Yz32-1600	Yz32-2000	Yz32-3150
Nominal Force		KN	400	630	1000	1600	2000	2500	3150	5000	6300	8000	10000	16000	20000	31500
Ejection force		KN	63	100	250	250	400	400	630	1000	1000	1250	1250	1600	2000	3150
Max working pressure of liquid		Mpa	26	25	25	25	25	25	25	25	25	25	25	25	25	25
Max. open height		mm	400	600	800	900	1000	1000	1250	1400	1500	1500	1500	1600	1800	2500
Slider stroke		mm	300	400	600	700	700	700	800	900	900	900	900	900	1000	1200
Ejection stroke		mm	140	160	200	250	250	250	300	300	300	350	350	450	450	500
Slide speed	Down	mm/s	40	40	100	100	100	120	120	120	120	120	120	150	150	300
	Pressing	mm/s	8~15	8~15	8~15	8~15	8~15	8~15	8~15	8-15	8~15	8~15	8~15	8-18	8~18	8~18
	Return	mm/s	60	60	80	80	80	80	90	80	80	80	100	120	120	250
Table size	Left-right	mm	350	450	600	800	800	800	1200	1400	1600	1600	1800	1800	2000	2800
Table size	Front-back	mm	350	420	600	700	800	800	1200	1400	1600	1600	1600	1600	2000	2000
Overall dimensions	Left-right	mm	1200	1300	2000	2200	2200	2200	3300	3500	3700	3700	4000	4200	4500	5800
	Front-back	mm	700	800	1000	1000	1200	1200	1600	1600	1800	1800	1800	2000	2000	2000
	Height	mm	1930	2350	3200	3300	3500	3700	4800	5000	5300	5700	5800	6000	6500	8200
Motor power		KW	3	5.5	7.5	15	18.5	18.5	22	37	37	44	60	90	134	180

OPTIONAL DIAGRAM
